VB-4T2R2GB

Name: VB-4T2R2GB
Brand: We-Con
SKU: VB-4T2R2GB

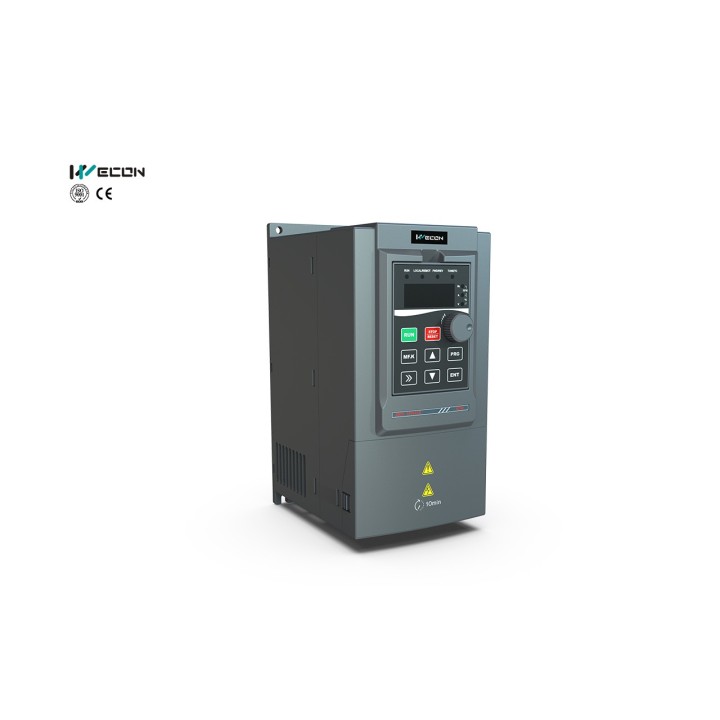

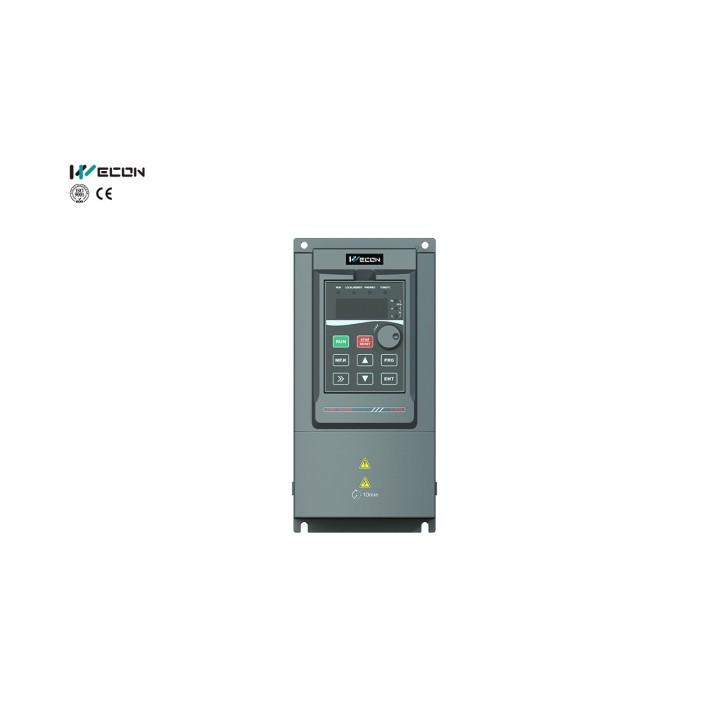

Wecon VB-Series VFD - Three-phase 380-480V, 5.1 A, 2.2 kW

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

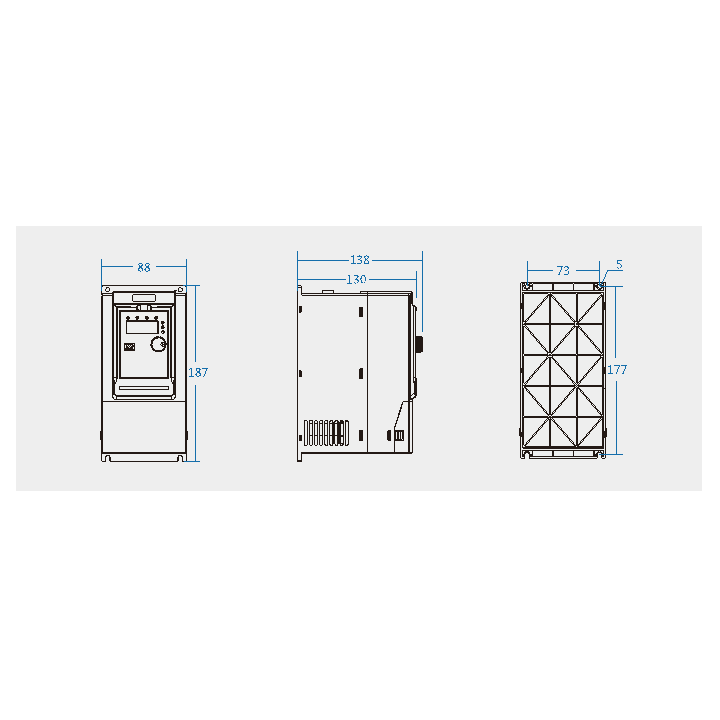

Model: VB-4T2R2GB; Input: Three-phase 380-480V; Rated Power (kW): 2.2; Power Capacity (kVA): 4; Input Current (A): 5.8; Output Current (A): 5.1; Overload capacity: 150% rated current (60 s), 180% rated current (1 s); Protection Class: IP20; Height (mm): 187; Width (mm): 88; Depth (mm): 138; Weight (kg): 1.4; Recommended Brake Resistance Specifications (External addition): 0.5 kW; Minimum braking resistance: 250 Ohm; Integrated brake function: YES; Analog input: 2 channels; Digital input: 6 channels; Analog output: 1 channels; Digital output: 1 channel; Relay output: 2 channels; RS485 : 1 channel; Power supply: 2-way, l-way l 0\61-way 24V
