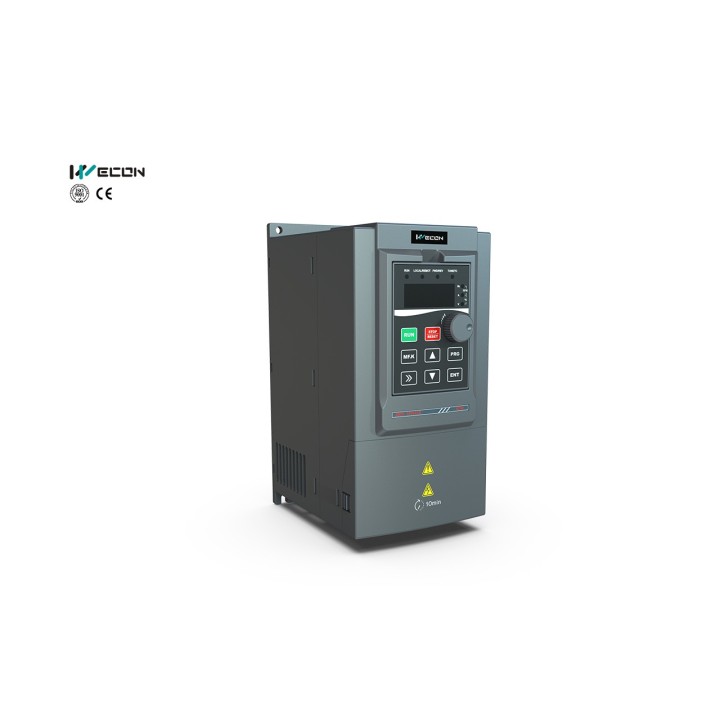

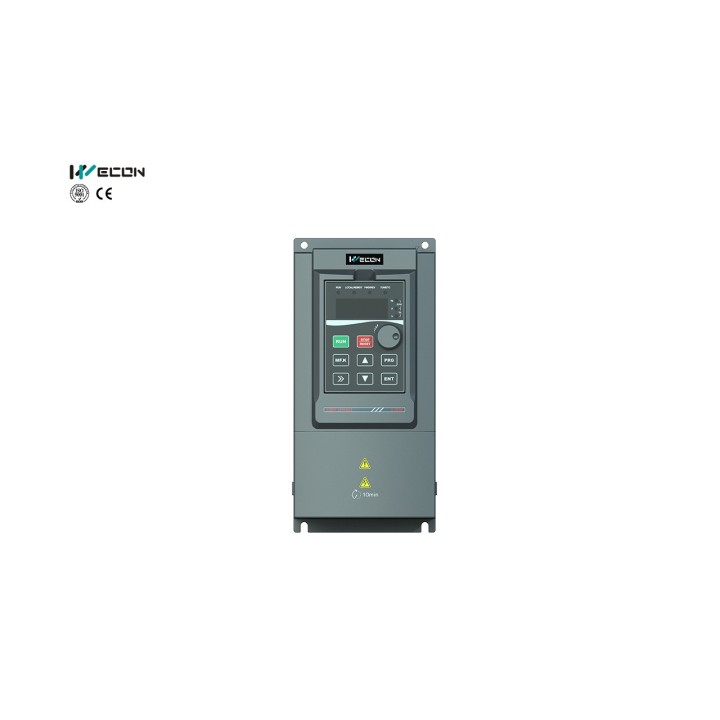

VB-2S1R5GB

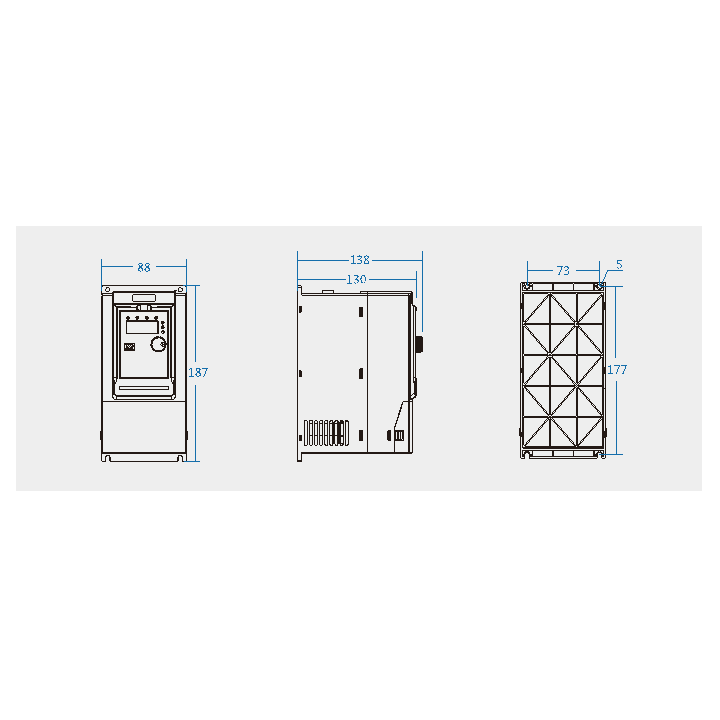

Model: VB-2S1R5GB; Input: Single-phase 200-240V; Rated Power (kW): 1.5; Power Capacity (kVA): 3; Input Current (A): 14; Output Current (A): 7; Overload capacity: 150% rated current (60 s), 180% rated current (1 s); Protection Class: IP20; Height (mm): 187; Width (mm): 88; Depth (mm): 138; Weight (kg): 1.4; Recommended Brake Resistance Specifications (External addition): 0.3 kW; Minimum braking resistance: 100 Ohm; Integrated brake function: YES; Analog input: 2 channels; Digital input: 6 channels; Analog output: 1 channels; Digital output: 1 channel; Relay output: 2 channels; RS485 : 1 channel; Power supply: 2-way, l-way l 0\61-way 24V
