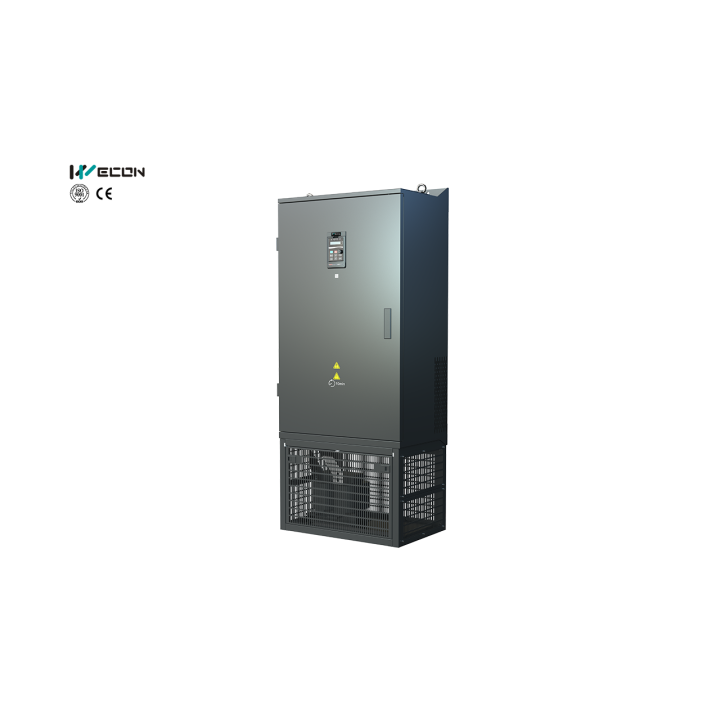

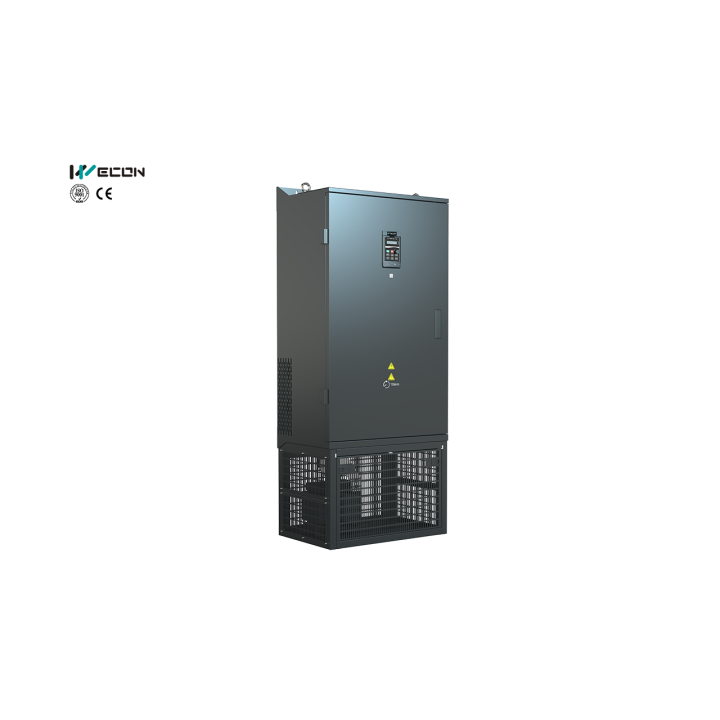

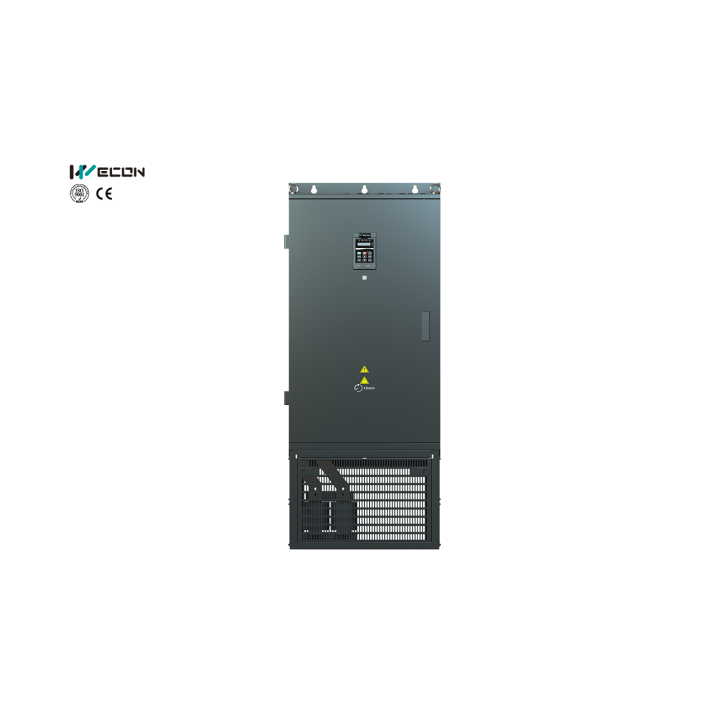

VB-4T355G/400P

Name: VB-4T355G/400P
Brand: We-Con
SKU: VB-4T355G/400P

Wecon VB-Series VFD - Three-phase 380-480V, 650/725 A, 355/400 kW

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

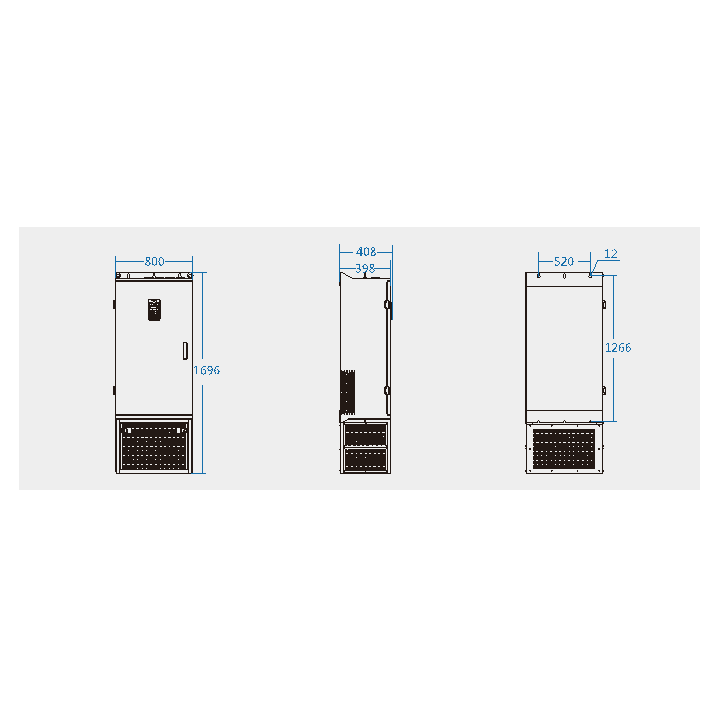

Model: VB-4T355G/400P; Input: Three-phase 380-480V; Rated Power (kW): 355/400; Power Capacity (kVA): 500/565; Input Current (A): 665/785; Output Current (A): 650/725; Overload capacity: 150% rated current (60 s), 180% rated current (1 s) for G Type, 120% rated current (60 s), 150% rated current (1 s) for P Type; Protection Class: IP20; Height (mm): 1800; Width (mm): 945; Depth (mm): 620; Weight (kg): 246; Recommended Brake Resistance Specifications (External addition): 89 kW; Minimum braking resistance: 1.5 Ohm; Integrated brake function: NO; Analog input: 2 channels; Digital input: 6 channels; Analog output: 2 channels; Digital output: 1 channel; Relay output: 2 channels; RS485 : 1 channel; Power supply: 2 channels (1 channel 10V, 1 channel 24V)
