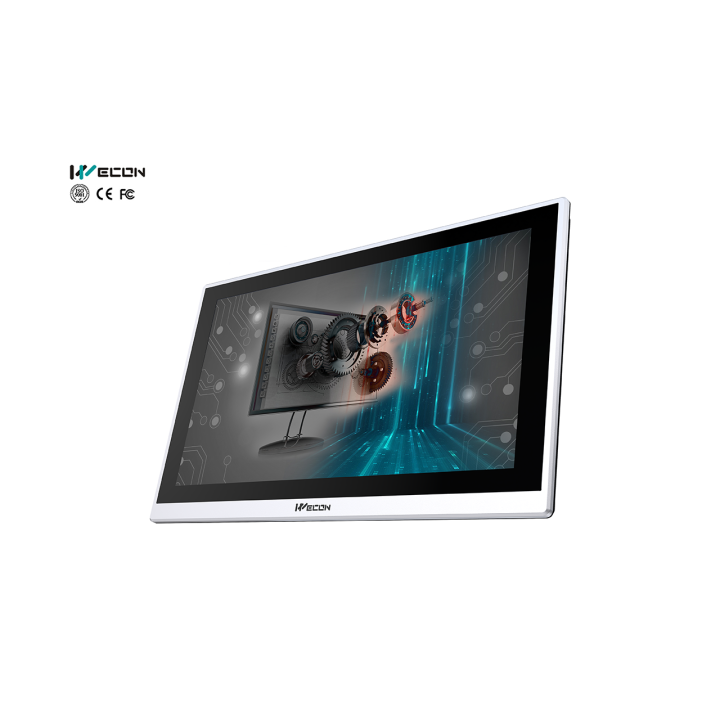

PI8150ig images
PI8150ig
Price:
€1,090.44
Tax included
Model: PI8150ig; Series: 8000ig; Resolution: 1920; Screen size: 15.0"; Pass-through: Serial; MQTT; Open Cloud; Lua Script; LAN Monitoring; Realtime Data: 300; Alarm Data: 200.
Model: PI8150ig;
Series: 8000ig;
Realtime Data: 300;
Alarm Data: 200;
History Data: 100;
APP & Remote Control;
Remote Update HMI;
WVPN;

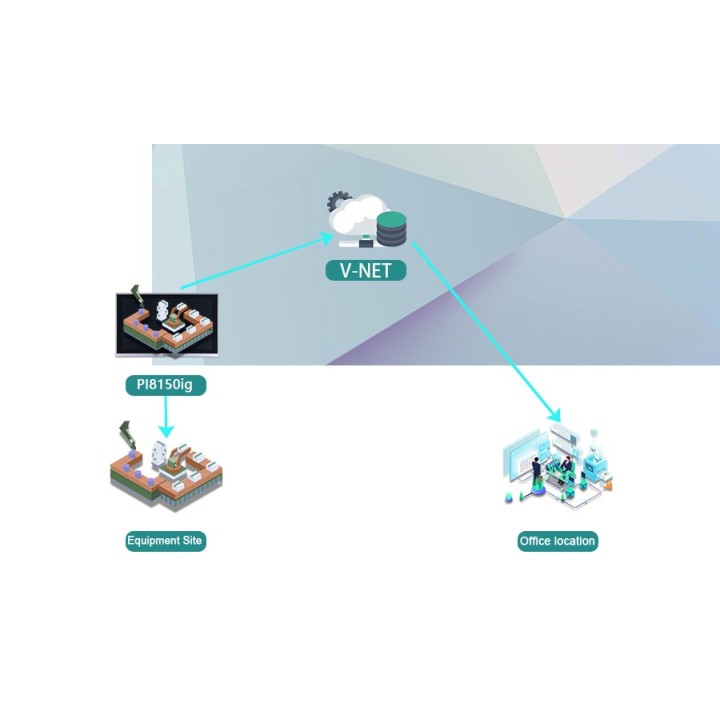

Cloud SCADA;
Pass-through: Serial;
MQTT;
Open Cloud;
Lua Script;
LAN Monitoring;
Screen size: 15.0";
Resolution: 1920
-
Brand
-
ReferencePI8150ig
-
In stock2 Items
-
SeriesPI8000ig
-
ModelPI8150ig
-
Realtime Data (points)300
-
Weight (kg)2.46
-
Alarm Data (points)200
-
History Data (points)100
-
APP & Remote ControlYES
-
Remote Update HMIYES
-
WVPNYES
-
Cloud SCADAYES
-
Pass-throughSerial
-
MQTTYES
-
Lua ScriptYES
-
LAN MonitoringYES
-
4G / WIFIX
-
OSLinux 4.4.0 QT based
-
CPUHigh Performance CPU
-
Screen size (inch)15.0
-
Resolution (px)1920x1080
-
Memory (MB)512
-
Flash (MB)4096
-

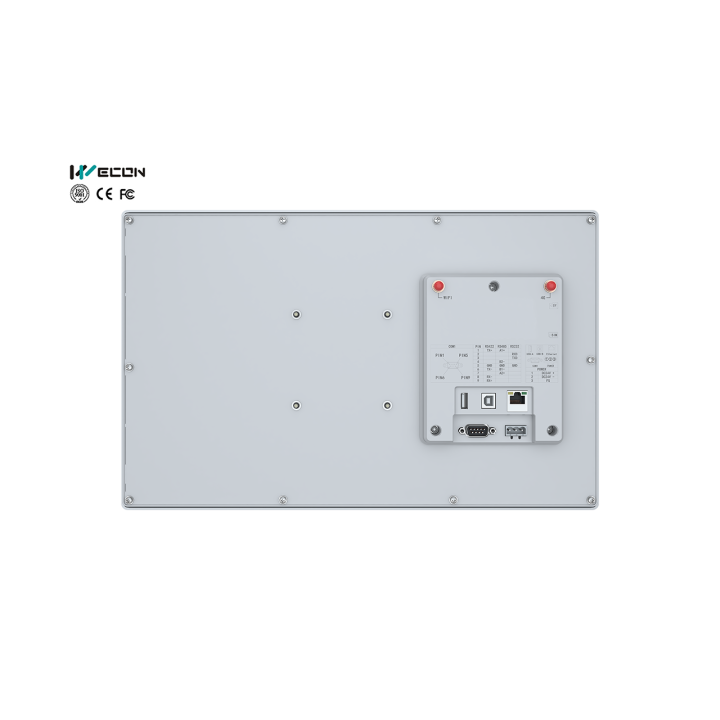

USB portUSB2.0 Host + USB2.0 Client
-
COM / MODBUS interfacesCOM1: CN1 RS422/RS485, CN2 RS232, CN3 RS485
-
Ethernet portsx1
-
Rated power< 15W
-

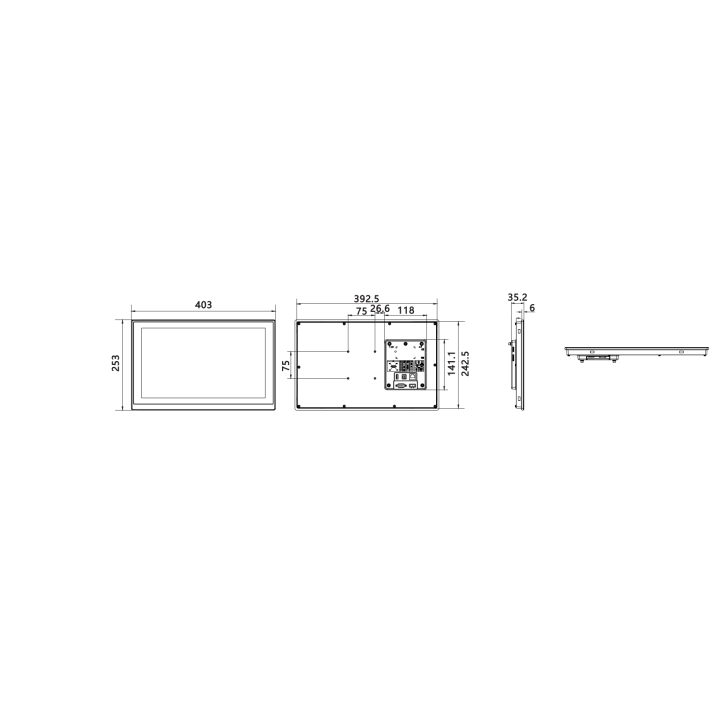

Overall size (W x H x D mm)403.0x253.0x35.2
-
Mounting cutout (W x H mm)394.0x244.0
