WECON

Motherboard specifications: quad core high performance CPU comes with 128M Flash/128M RAM memory.

Display: 10.1 inch; Resolution: 1024×600.

Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet: x1.

Download methods: USB cable, USB flash drive, LAN, remote download.

Mounting cutout: 260.0×179.0 mm.

Share

Model: PI3102ig-C(W)

Series: PI3000ig

Main OS: Linux 4.4.0 (QT based)

Processor: High Performance CPU

Motherboard specifications: quad core high performance CPU with 128M Flash/128M RAM memory

Display: 10.1" TFT, 1024×600

Memory / Flash: 128 MB / 128 MB

USB: USB2.0 Host + USB2.0 Client

Interfaces: COM1 (CN1: RS422/RS485, CN2: RS232, CN3: RS485), COM2: n/a, COM3: n/a

Download methods: USB download cable, USB flash drive download, LAN download, remote download

Ethernet: x1

CANopen: n/a

Wi-Fi: WIFI

4G LTE: n/a

Power: DC 24V (input range DC 12~28V), rated power < 10W

Protection: IP65 (front panel)

Shell Material: Plastic+ABS (Polycarbonate)

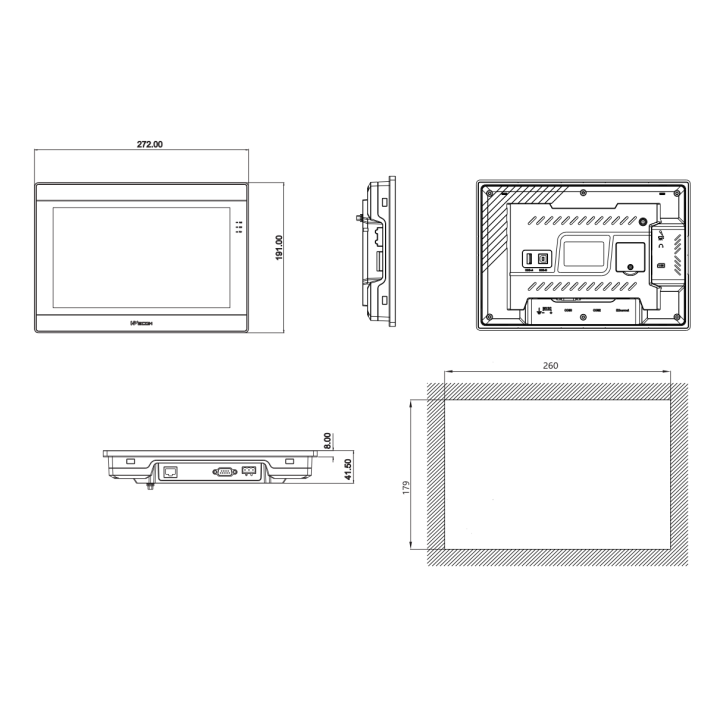

Overall Size (W×H×D): 272.0×191.0×41.5 mm

Mounting Cutout (W×H): 260.0×179.0 mm

Weight: 1.02 kg

  • Brand
  • Reference
    PI3102ig-C(W)

  • Series
    PI3000ig
  • Model
    PI3102ig-C(W)
  • Realtime Data (points)
    100
  • Weight (kg)
    1.02
  • Alarm Data (points)
    20
  • History Data (points)
    50
  • APP & Remote Control
    YES
  • Remote Update HMI
    YES
  • WVPN
    YES
  • Cloud SCADA
    YES
  • Pass-through
    Serial
  • MQTT
    YES
  • Lua Script
    YES
  • LAN Monitoring
    YES
  • 4G / WIFI
    WIFI
  • OS
    Linux 4.4.0 QT based
  • CPU
    High Performance CPU
  • Screen size (inch)
    10.1
  • Resolution (px)
    1024x600
  • Memory (MB)
    128
  • Flash (MB)
    128
  • USB port
    USB2.0 Host + USB2.0 Client
  • COM / MODBUS interfaces
    COM1: CN1 RS422/RS485, CN2 RS232, CN3 RS485
  • Ethernet ports
    x1
  • Rated power
    n/a
  • Overall size (W x H x D mm)
    272.0x191.0x41.5
  • Mounting cutout (W x H mm)
    260.0x179.0
