PI3070ig (W)/-C(W)
PI3070ig (W)/-C(W)
PI3070ig (W)/-C(W)
PI3070ig (W)/-C(W)

PI3070ig-C(W)

WECON
€334.30
Tax included

Motherboard specifications: quad core high performance CPU comes with 128M Flash/128M RAM memory.

Display: 7.0 inch; Resolution: 800×480.

Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet: x1.

Download methods: USB cable, USB flash drive, LAN, remote download.

Mounting cutout: 192.0×138.0 mm.

Last items in stock
Share

Model: PI3070ig-C(W)

Series: PI3000ig

Main OS: Linux 4.4.0 (QT based)

Processor: High Performance CPU

Motherboard specifications: quad core high performance CPU with 128M Flash/128M RAM memory

Display: 7.0" TFT, 800×480

Memory / Flash: 128 MB / 128 MB

USB: USB2.0 Host + USB2.0 Client

Interfaces: COM1 (CN1: RS422/RS485, CN2: RS232, CN3: RS485), COM2: n/a, COM3: n/a

Download methods: USB download cable, USB flash drive download, LAN download, remote download

Ethernet: x1

CANopen: n/a

Wi-Fi: WIFI

4G LTE: n/a

Power: DC 24V (input range DC 12~28V), rated power < 8W

Protection: IP65 (front panel)

Shell Material: Plastic+ABS (Polycarbonate)

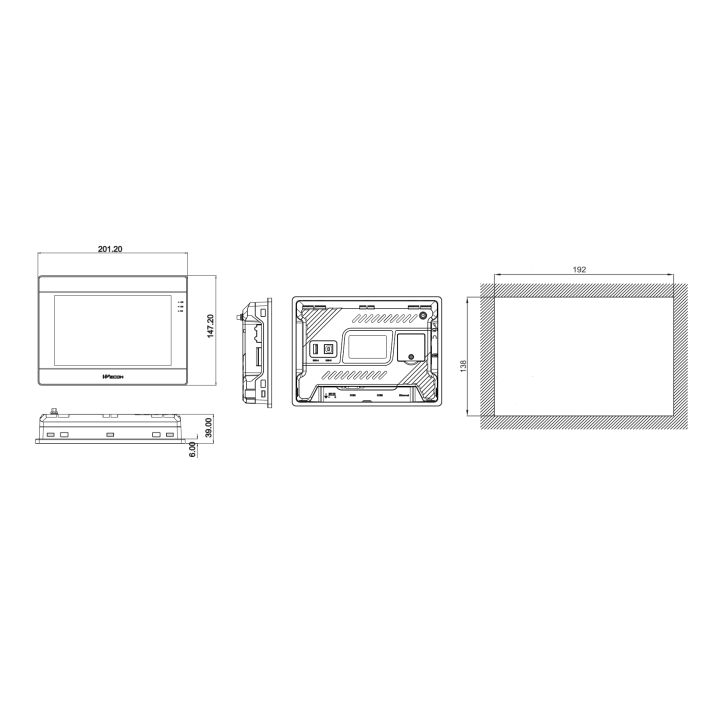

Overall Size (W×H×D): 201.2×147.2×39.0 mm

Mounting Cutout (W×H): 192.0×138.0 mm

Weight: 0.52 kg

  • Brand
  • Reference
    PI3070ig-C(W)
  • In stock
    1 Item

  • Series
    PI3000ig
  • Model
    PI3070ig-C(W)
  • Realtime Data (points)
    100
  • Weight (kg)
    0.52
  • Alarm Data (points)
    20
  • History Data (points)
    50
  • APP & Remote Control
    YES
  • Remote Update HMI
    YES
  • WVPN
    YES
  • Cloud SCADA
    YES
  • Pass-through
    Serial
  • MQTT
    YES
  • Lua Script
    YES
  • LAN Monitoring
    YES
  • 4G / WIFI
    WIFI
  • OS
    Linux 4.4.0 QT based
  • CPU
    High Performance CPU
  • Screen size (inch)
    7.0
  • Resolution (px)
    800x480
  • Memory (MB)
    128
  • Flash (MB)
    128
  • USB port
    USB2.0 Host + USB2.0 Client
  • COM / MODBUS interfaces
    COM1: CN1 RS422/RS485, CN2 RS232, CN3 RS485
  • Ethernet ports
    x1
  • Rated power
    n/a
  • Overall size (W x H x D mm)
    201.2x147.2x39.0
  • Mounting cutout (W x H mm)
    192.0x138.0
