WECON
696,45 € (Ietaupi 0,00 €)
696,45 €
Cena ar PVN
Modelis: PI8101ig(N); Series: 8000ig; Resolution: 1024; Screen size: 10.2"; Pass-through: Serial; MQTT; Open Cloud; Lua Script; LAN Monitoring; Realtime Data: 300; Alarm Data: 200.
Pasūtījums ar atliktu piegādi
Share

Model: PI8102ig;

Series: 8000ig;

Realtime Data: 300;

Alarm Data: 200;

History Data: 100;

APP & Remote Control;

Remote Update HMI;

WVPN;

Cloud SCADA;

Pass-through: Serial;

MQTT;

Open Cloud;

Lua Script;

LAN Monitoring;

Screen size: 10.2";

Resolution: 1024

  • Zīmols
  • Norāde
    PI8101ig(N)

  • Sērija
    PI8000ig(N)
  • Modelis
    PI8101ig(N)
  • Realtime dati (punkti)
    300
  • Svars (kg)
    1.02
  • Alarma dati (punkti)
    200
  • Vestures dati (punkti)
    100
  • APP un attalinata vadiba
    Ja
  • Attalinata HMI atjaunosana
    Ja
  • WVPN
    Ja
  • Cloud SCADA
    Ja
  • Passthrough
    Serial
  • MQTT
    Ja
  • Lua skripts
    Ja
  • LAN monitorings
    Ja
  • 4G / WIFI
    X
  • OS
    Linux 4.4.0 QT based
  • CPU
    High Performance CPU
  • Ekrana izmers (collas)
    10.1
  • Izskirtspeja (px)
    1024x600
  • Atmina (MB)
    512
  • Flash (MB)
    4096
  • USB ports
    USB Host: USB2.0 x1; USB Device: USB Type-C 2.0 x1
  • COM / MODBUS saskarnes
    COM1: CN1 RS422/RS485, CN2 RS232, CN3 RS485
  • Ethernet porti
    x1
  • Nominala jauda
    < 10W

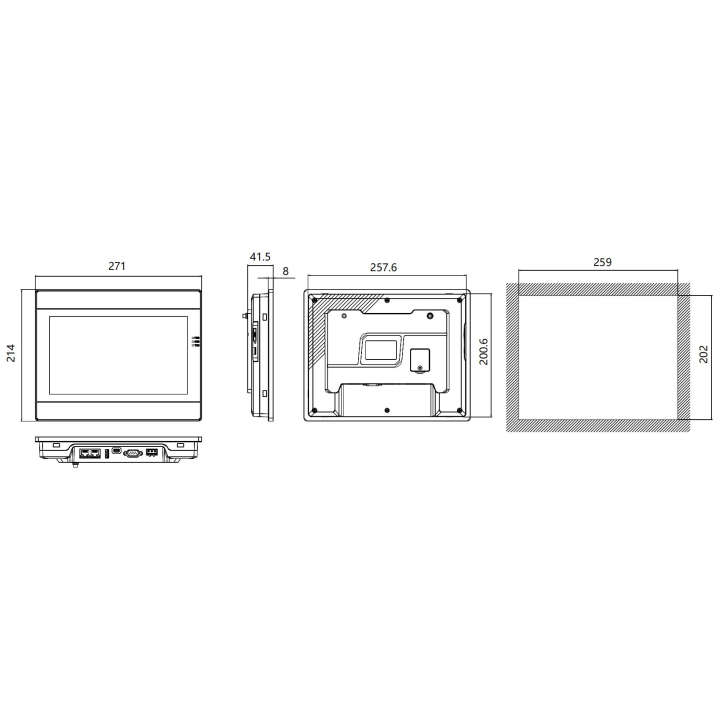

  • Arejie izmeri (W x H x D mm)
    271.0x214.0x41.5
  • Iebuves izgriezums (W x H mm)
    259.0x202.0
