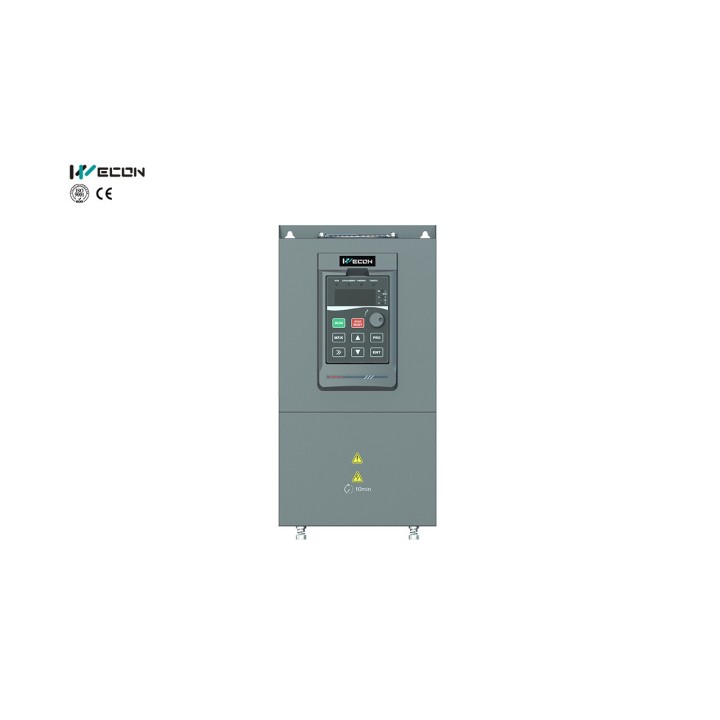

VB-4T160G/185P

Name: VB-4T160G/185P
Brand: We-Con
SKU: VB-4T160G/185P

Wecon VB-Series VFD - Three-phase 380-480V, 304/340 A, 160/185 kW

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

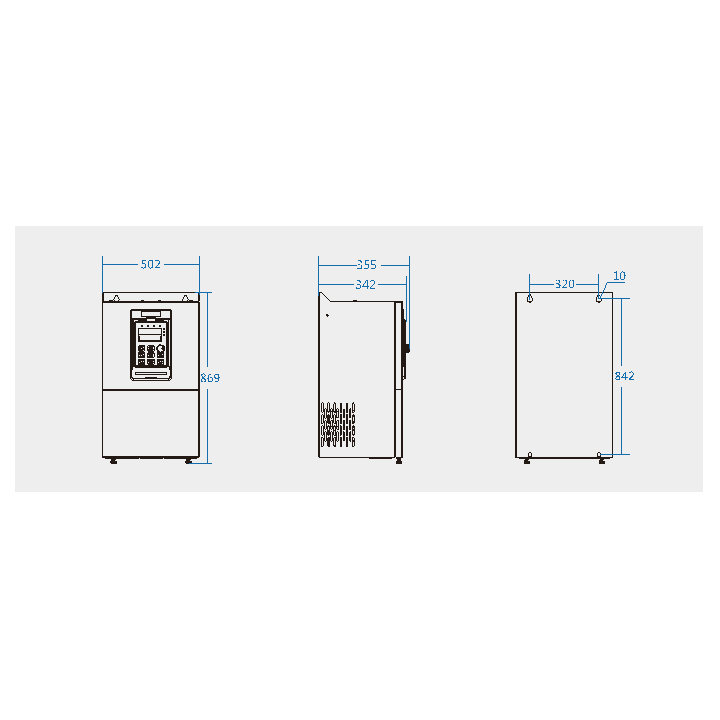

Model: VB-4T160G/185P; Input: Three-phase 380-480V; Rated Power (kW): 160/185; Power Capacity (kVA): 231/245; Input Current (A): 307/345; Output Current (A): 304/340; Overload capacity: 150% rated current (60 s), 180% rated current (1 s) for G Type, 120% rated current (60 s), 150% rated current (1 s) for P Type; Protection Class: IP20; Height (mm): 985; Width (mm): 610; Depth (mm): 540; Weight (kg): 89; Recommended Brake Resistance Specifications (External addition): 40 kW; Minimum braking resistance: 4 Ohm; Integrated brake function: NO; Analog input: 2 channels; Digital input: 6 channels; Analog output: 2 channels; Digital output: 1 channel; Relay output: 2 channels; RS485 : 1 channel; Power supply: 2 channels (1 channel 10V, 1 channel 24V)
