VB-4T7R5GB

Name: VB-4T7R5GB
Brand: We-Con
SKU: VB-4T7R5GB

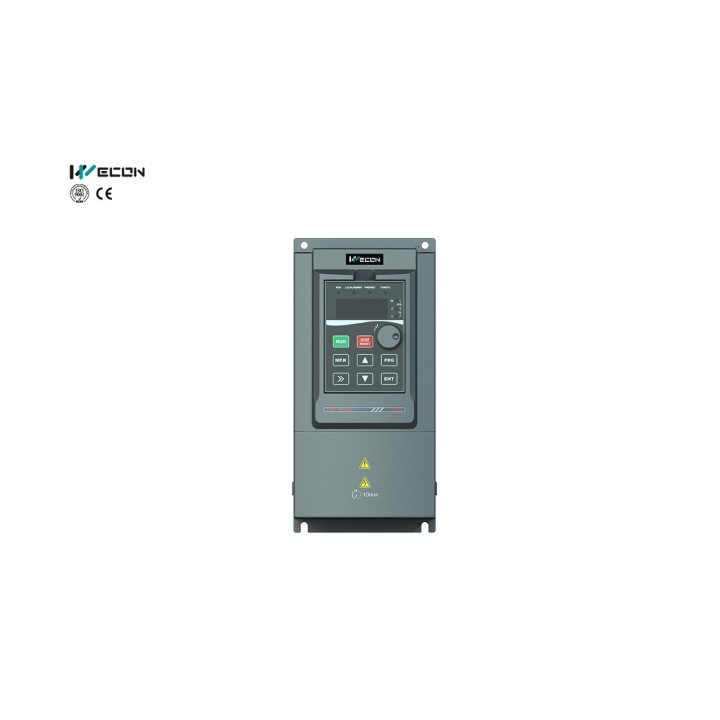

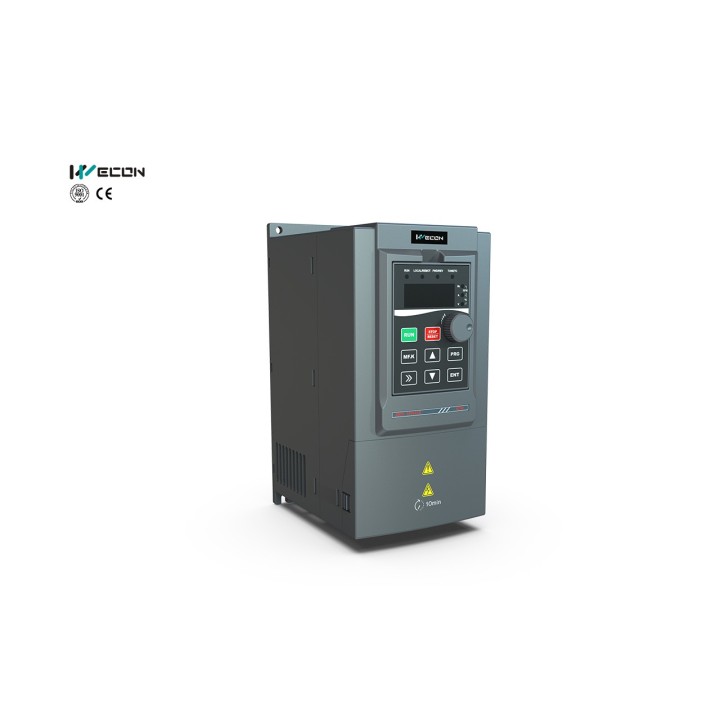

Wecon VB-Series VFD - Three-phase 380-480V, 17 A, 7.5 kW

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Model: VB-4T7R5GB; Input: Three-phase 380-480V; Rated Power (kW): 7.5; Power Capacity (kVA): 11; Input Current (A): 20.5; Output Current (A): 17; Overload capacity: 150% rated current (60 s), 180% rated current (1 s); Protection Class: IP20; Height (mm): 410; Width (mm): 260; Depth (mm): 291; Weight (kg): 7; Recommended Brake Resistance Specifications (External addition): 1.5 kW; Minimum braking resistance: 75 Ohm; Integrated brake function: YES; Analog input: 2 channels; Digital input: 6 channels; Analog output: 2 channels; Digital output: 1 channel; Relay output: 2 channels; RS485 : 1 channel; Power supply: 2 channels (1 channel 10V, 1 channel 24V)
