VB-4T004GB/5R5PB

Name: VB-4T004GB/5R5PB
Brand: We-Con
SKU: VB-4T004GB/5R5PB

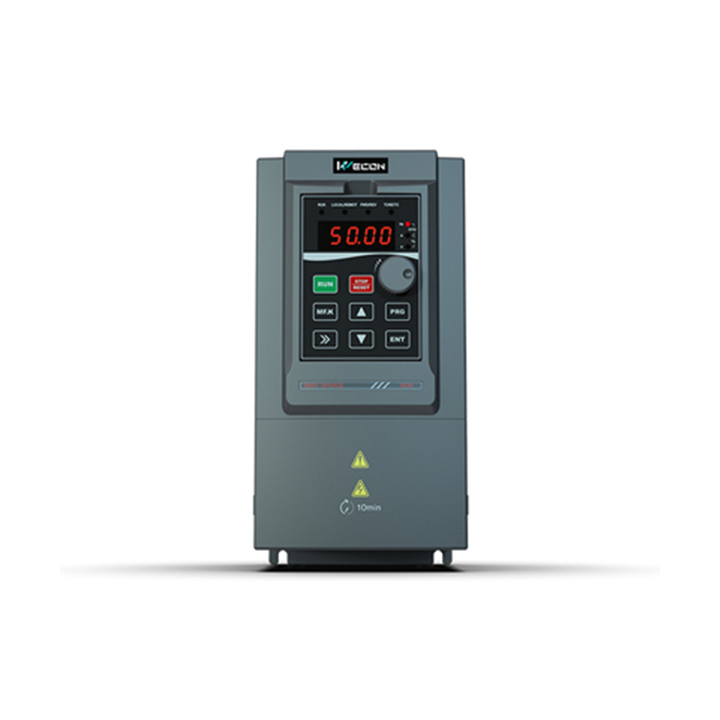

Wecon VB-Series VFD - Three-phase 380-480V, 9/13 A, 4/5.5 kW

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

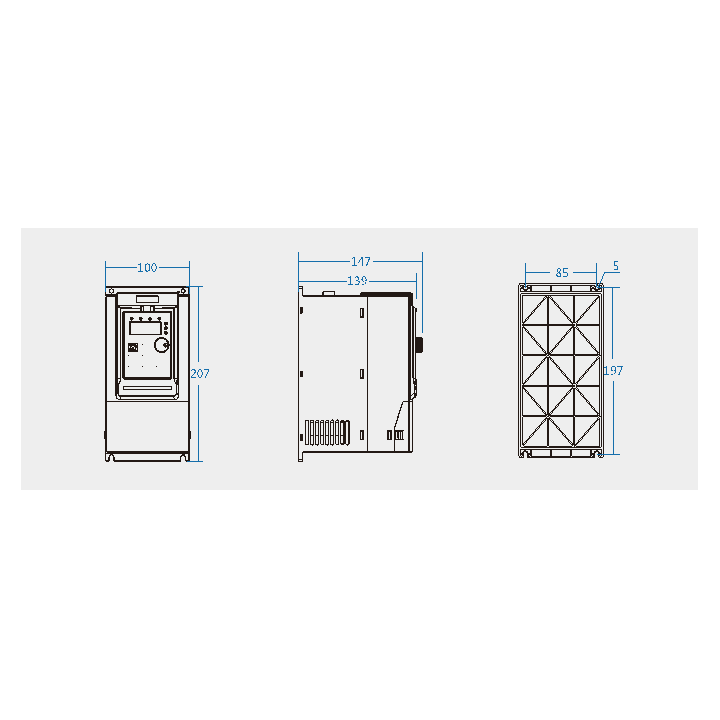

Model: VB-4T004GB/5R5PB; Input: Three-phase 380-480V; Rated Power (kW): 4/5.5; Power Capacity (kVA): 5.9/8.9; Input Current (A): 10.5/14.6; Output Current (A): 9/13; Overload capacity: 150% rated current (60 s), 180% rated current (1 s) for G Type, 120% rated current (60 s), 150% rated current (1 s) Fpr P Type; Protection Class: IP20; Height (mm): 207; Width (mm): 100; Depth (mm): 147; Weight (kg): 1.7; Recommended Brake Resistance Specifications (External addition): 0.8 kW; Minimum braking resistance: 150 Ohm; Integrated brake function: YES; Analog input: 2 channels; Digital input: 6 channels; Analog output: 1 channels; Digital output: 1 channel; Relay output: 2 channels; RS485 : 1 channel; Power supply: 2 channels (1 channel 10V, 1 channel 24V)
