WECON
1 002,88 € (Ietaupi 0,00 €)
1 002,88 €
Cena ar PVN
Modelis: PI8102ig(G); Series: 8000ig(G); Resolution: 1024*600; E; Screen size: 10.2"; Pass-through: Serial; MQTT; Lua Script; LAN Monitoring; Realtime Data: 300; Alarm Data: 200.
Ir noliktavā
Share

Model: PI8102ig(G);

Series: 8000ig(G);

Realtime Data: 300;

Alarm Data: 200;

History Data: 100;

APP & Remote Control;

Remote Update HMI;

WVPN;

Cloud SCADA;

Pass-through: Serial;

MQTT;

Lua Script;

LAN Monitoring;

Screen size: 10.2";

Resolution: 1024*600;

E

  • Zīmols
  • Norāde
    PI8102ig(G)
  • Pieejamās vispirms
    5 vienības:

  • Sērija
    PI8000ig
  • Modelis
    PI8102ig(G)
  • Realtime dati (punkti)
    300
  • Svars (kg)
    1.02
  • Alarma dati (punkti)
    200
  • Vestures dati (punkti)
    100
  • APP un attalinata vadiba
    Ja
  • Attalinata HMI atjaunosana
    Ja
  • WVPN
    Ja
  • Cloud SCADA
    Ja
  • Passthrough
    Serial
  • MQTT
    Ja
  • Lua skripts
    Ja
  • LAN monitorings
    Ja
  • 4G / WIFI
    4G
  • OS
    Linux 4.4.0 QT based
  • CPU
    High Performance CPU
  • Ekrana izmers (collas)
    10.1
  • Izskirtspeja (px)
    1024x600
  • Atmina (MB)
    512
  • Flash (MB)
    4096
  • USB ports
    USB2.0 Host + USB2.0 Client
  • COM / MODBUS saskarnes
    COM1: CN1 RS422/RS485, CN2 RS232, CN3 RS485
  • Ethernet porti
    x1
  • Nominala jauda
    < 10W

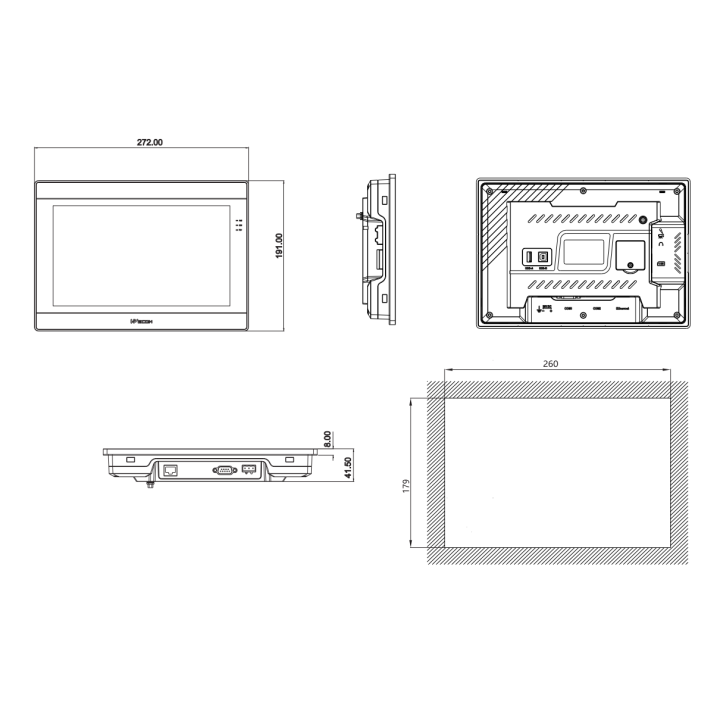

  • Arejie izmeri (W x H x D mm)
    272.0x191.0x41.5
  • Iebuves izgriezums (W x H mm)
    260.0x179.0
